• 8 Channel Passive UTP Video Balun Transceiver

HXVB-108G

8 Channel Passive UTP Video Balun Transceiver

HXVB-108G is a high-definition AV signal passive UTP video balun transmitter which mainly used for security, education and other fields. It uses Cat5 or Cat5e as a transmission medium. It can real-time transmit 300 meters color or 600 meters black and white baseband video signal. its transmission distance will up to 1200m color signal or 1800m black and white signal if working with active receivers. it will save wiring costs, simplify your wiring works.


  • Specification & Feature
    • Real-time transmission of High-Definition video signals.
    • Transmission distance up to 300m working with passive transceivers, up to 1200m woring with HXVB-120R active receivers.
    • No power needed.
    • NTSC, PAL, SECAM video formats
    • Compact size and easy installation
    • Compatible with all qualified UTP cameras
    • ABS plastic shell fire, copper BNC connector, environmental terminal
    Transmission distance
    		 0-300m
    Signal Type
    		 Video(PAL, NTSC, SECAM and other baseband video signal)
    Connector
    		 8 x Coaxial BNC(female), 2 x RJ45, 2 x 8-Pin twisted-pair terminal
    Frequency response
    		 DC to 6MHz
    CMRR
    		 0 to 6MHz 60dB (typical)
    Impedance
    		 Coax (BNC female) 75 Ohm; UTP (unshielded twisted pair) 100 ohms
    Cable Type
    		 Cat5 or Cat5e unshielded twisted pair
    Cable Impedance
    		 100 ± 20 ohms
    Distributed capacitance
    		 less than 62pF/m
    DC loop resistance
    		 18 Ohm/100m
    Operating temperature
    		 -20 ℃ ~70 ℃
    Relative Humidity
    		 0~95%(non-condensing)
    Storage temperature
    		 -40 ℃ ~95 ℃
    Dimension
    		 120mm x 78mm x 32mm
    Net Weight
    		 210g
    Other Side Picture

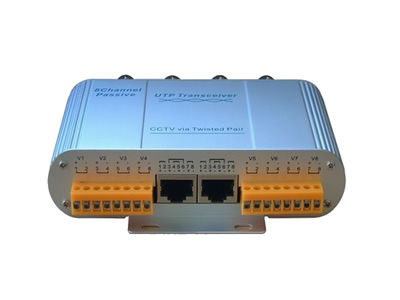

    video blaun
  • User Manual
    user manual of 8 Channel Passive UTP Video Balun Transceiver video_balun_usermanual.pdf
