DL-20

250m TTL to ZigBee Module

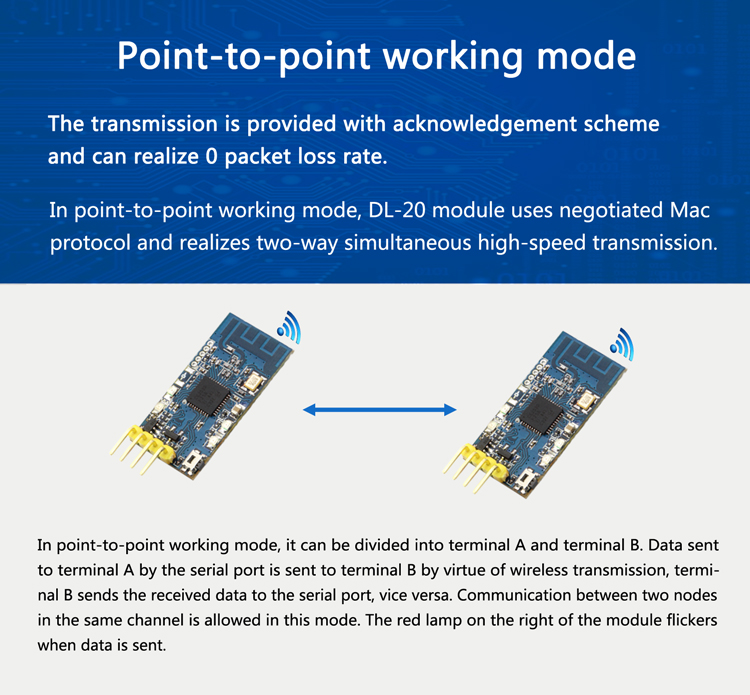

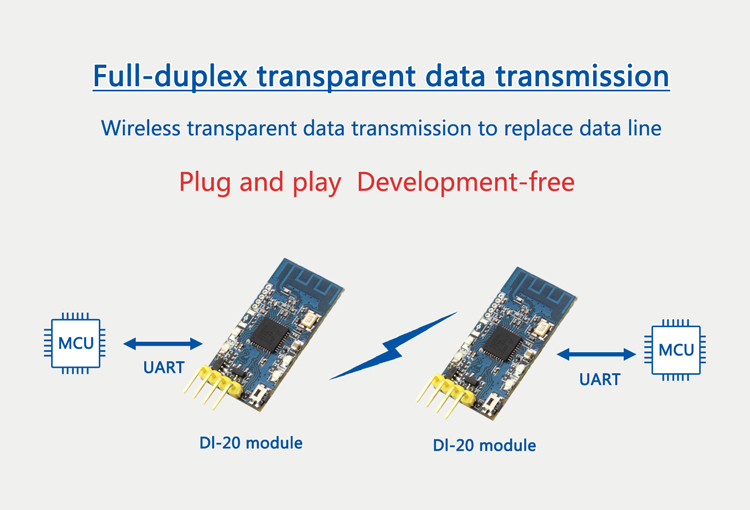

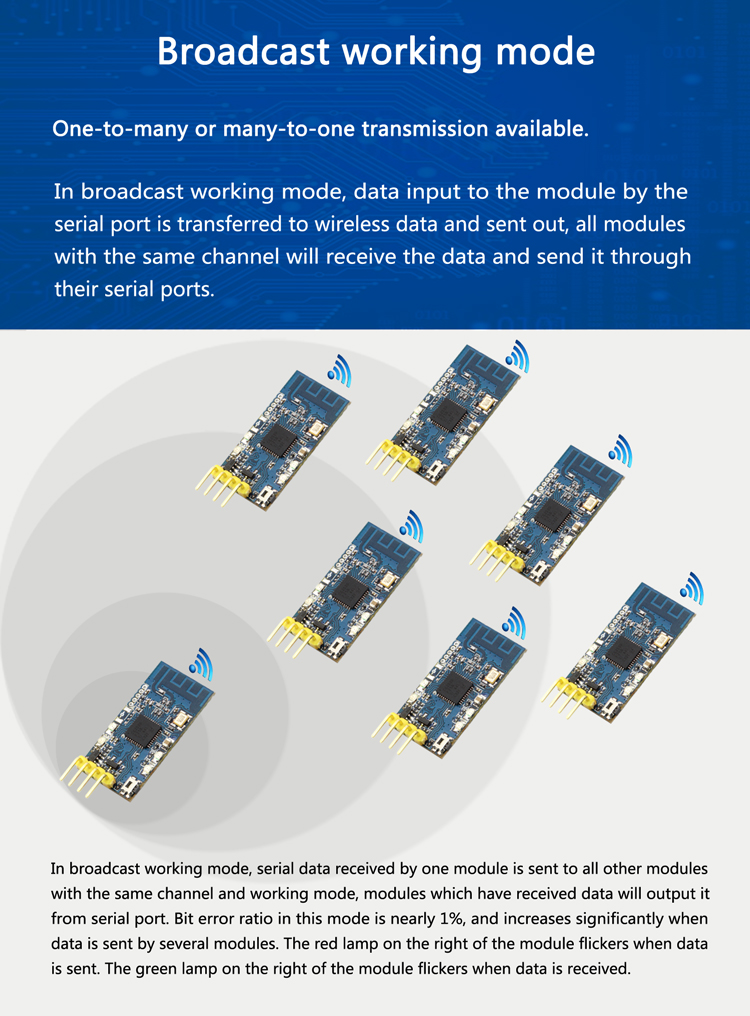

DL-20 TTL ZigBee wireless serial communication module is a full-duplex wireless transparent transmission module with UART port,it operates within public frequency band 2400MHz~2450MHz.The module uses CC2530 chip produced by TI,supports IEEE-802.15.4 protocol,enables traditional serial device and MCU-controlled equipment to realize serial wireless transmission,and avoids complex wiring efforts.Being available in point-to-point communication and broadcast communication,it features in plug and play,development-free and flexible usage.
