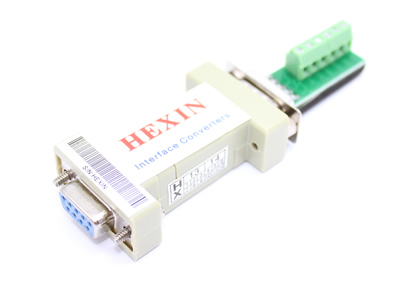

• RS-232 To RS-485 Converter

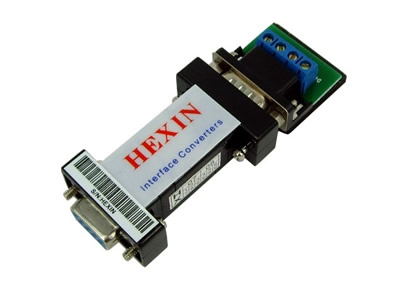

HXSP-485B

RS-232 To RS-485 Converter

  • Bi-directional connector convert between RS-232 and RS-485
  • Port-Powered, no need extra power supply
  • Support 0~115200bps baud rate
  • Low power consumption


  • Specification & Feature

    Standard

    Compliant with EIA RS-232, RS-485 standards

    Interface

    RS-232: DB9 interface

    RS-485: Industrial terminal block

    Baud Rate

    0~115200bps

    Serial port

    1 port RS-232 DB9, 1 port RS-485(DB9 with block)

    RS-232 signal

    TXD, RXD, GND

    RS-485 signal

    485+, 485-, GND

    Distance

    RS-232: 5m

    RS-485: 1200m

    Working mothod

    asynchronous, point to point or multi-point, 2 wire half-duplex

    Transmission medium

    Ordinary Line, twisted pair cable or Shielded Wire

    Communication protocol

    Transparent

    Direction control

    automatic data flow control technology which can detect and control data transmission direction automatically

    Power

    No power supply, Obtain power from TXD, RTS, DTR signals of RS-232 serial port

    Environment

    Operating temperature: -20~70℃

    Storage temperature: -25~85℃

    Relative humidity: 5%~95%(no condensation)

    Shell

    plastic

    Certification

    CE, FCC, RoHS

    Warranty

    3 years

  • User Manual
    user manual of RS-232 To RS-485 Converter HXSP-485_RS-232_RS-485_UserManual.pdf
