• USB 5.1 Sound Card Box with Optical SPDIF

HXSP-S513

USB 5.1 Sound Card Box with Optical SPDIF



  • Specification & Feature

    Description
    • USB Sound is an USB audio controller.It supports 32KBz,44.1khz.(which two need driver or application software support)and 48KHZ sampling rate in digital recording,48KHZ sampling in analog recordin and 48KHZ in digital/analog audio playback.
    • In digital playback mode,it receives audio stream from PC via USB interface and transmits audio data according to the AES/EBU,IEC60958,S/PDIF consumer interface standards.Only R,L channel PCM audio in 5.1 channel can be conveyed in digital playback mode.In analog playback mode,it supports 6 channels codec for analog playback.
    • In digital recording mode,it receives S/PDIF digital audio input and sends back to PC through USB.Three sampling rates;includes 32KHZ,44.1KHZ are automatically locked internally,in analog recording mode,fixed 48khz sampling rate is supported by analog audio recording

    Specification & Features
    • plug and play
    • Supports SES/EBU,IEC60958,S/PDIF consumer formats for stereo PCM audio
    • Fixed 48KHZ sampling rate for 5.1 channel playback.
    • Supports analog recording function
    • Supported SCMS copy protection
    • Compatible with Win98SE,ME,2000,XP,Mac OS 9.1
    • Fully duplex playback/recording audio stream without sound card in PC
    • Compliant with USB specification v1.1
    • Compliant with USB audio device class v1.0
    • Supports USB full speed 12Mbit serial data transmission
    • 3 input terminals
    • 3 output terminals
    • Alternate setting 0 is a zero-bandwidth setting used to release the claimed bandwidth on the
    • bus when this device is inactive
    • Isochronous transfer uses adaptive and asynchronous synchronization
    • Support multi channels audio code interface for 5.1 channel playback
    • Supports conventional audio 2 channels source playbac

    Pictures

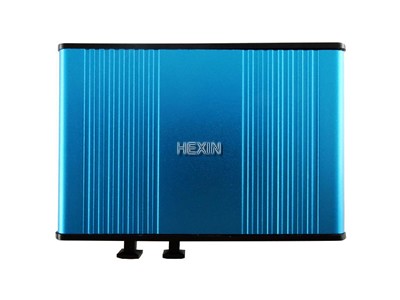

    usb sound card
