- Supports TCP / IP protocols : TCP, UDP, ICMP, IPv4ARP, IGMP, PPPoE
- Working protocol mode : UDP, TCP Server, TCP Client, Virtual COM
- Network Interface: 100M/10Mbps, automatic matching , 1.5kV isolation protection
- Comply with IEEE802.3 10BASE-T and 802.3u 100BASE-TX standards
- Support serial number: (dual serial type) Supports 2 ports rs485 bus
- Baud rate: 300bps ~ 1.8432Mbps
- Parity: None , Odd , even parity
- Data bits: 7,8 bit
- Stop bit: 1,2 bit
- Flow Control: no flow control , RTS / CTS
- Working environment: -45 ~ 85 ℃, 5 ~ 95% humidity
- Storage environment: -55 ~ 125 ℃,, 5 ~ 95% humidity

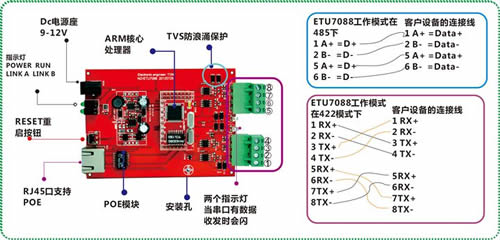

- Interface: RJ45 socket, 2 ports rs485
- Transmission medium: UTP shielded twisted pair cable supports parallel lines and cross lines. Work in TCP Server mode , TCP Client mode , UDP mode , virtual serial mode Isolation:
- Transmission distance: RS485/422 interfaces 1200m; RS232 interfaces 15m
- Power Supply: DC5-12V. also support POE powered PD standard equipment, support IEEEE802.af
- Long 6.2CM, high 8.0CM, 2.5CM thick 1CM plus hanging on each side of the bottom hole
|
