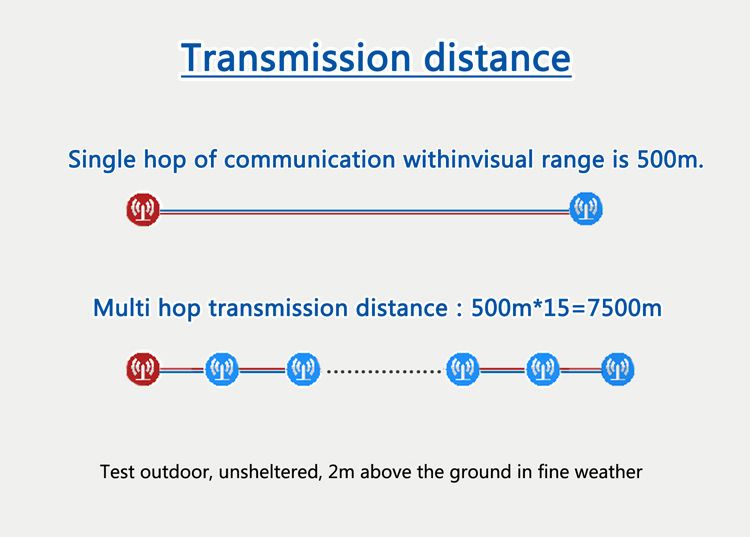

• 7500m Multi-Hop Ad-Hoc ZigBee Module

DL-LN32P

7500m Multi-Hop Ad-Hoc ZigBee Module

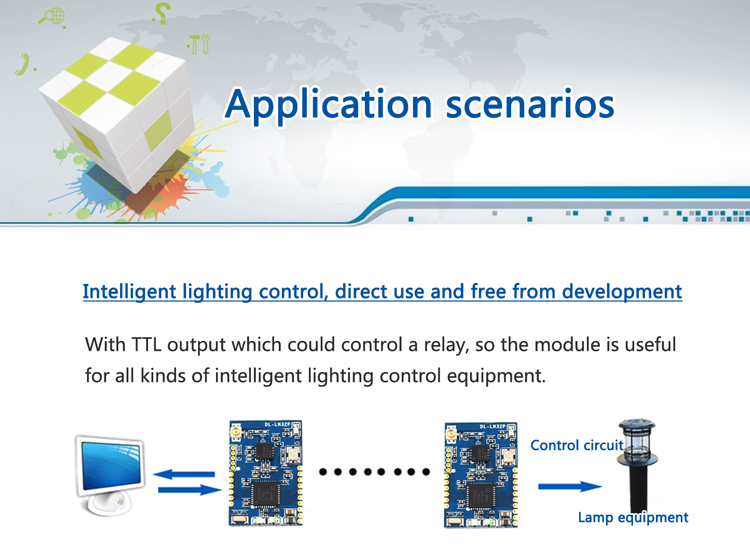

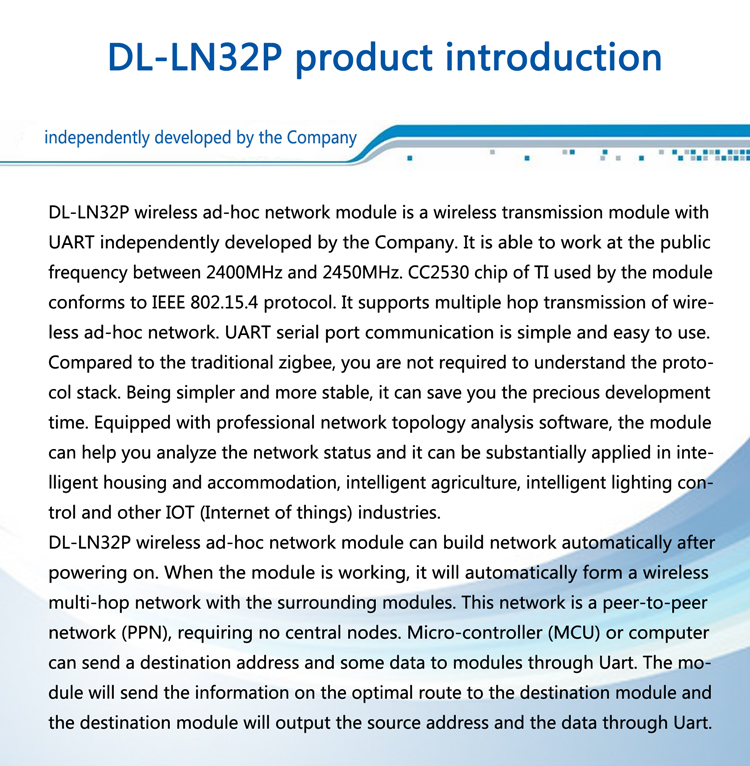

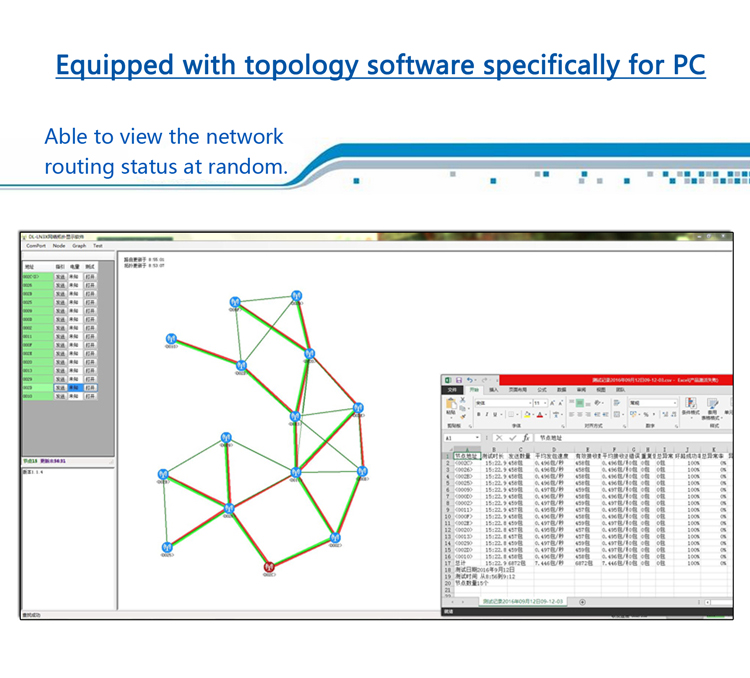

DL-LN32P multi-hop ad-hoc zigbee module is a wireless transmission module with UART independently developed by the Company. It is able to work at the public frequency between 2400MHz and 2450MHz. CC2530 chip of TI used by the module conforms to IEEE 802.15.4 protocol. It supports multiple hop transmission of wire-less ad-hoc network. UART serial port communication is simple and easy to use. Compared to the traditional zigbee, you are not required to understand the protocol stack. Being simpler and more stable,it can save you the precious development time. Equipped with professional network topology analysis software, the module can help you analyze the network status and it can be substantially applied in inteligent housing and accommodation,intelligent agriculture,intelligent lighting control and other IoT (Internet of things) industries.

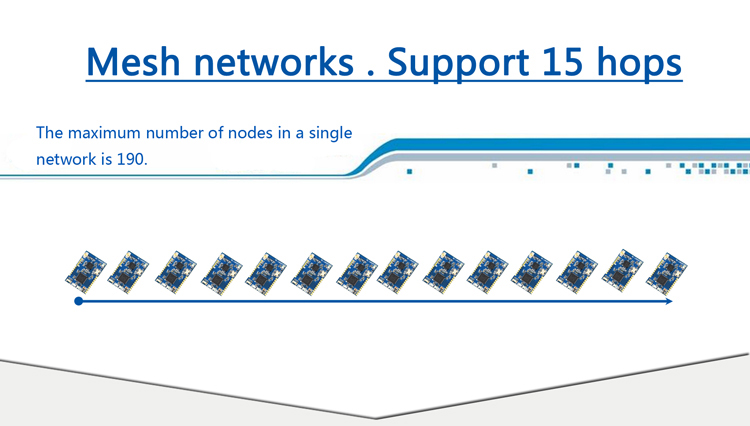

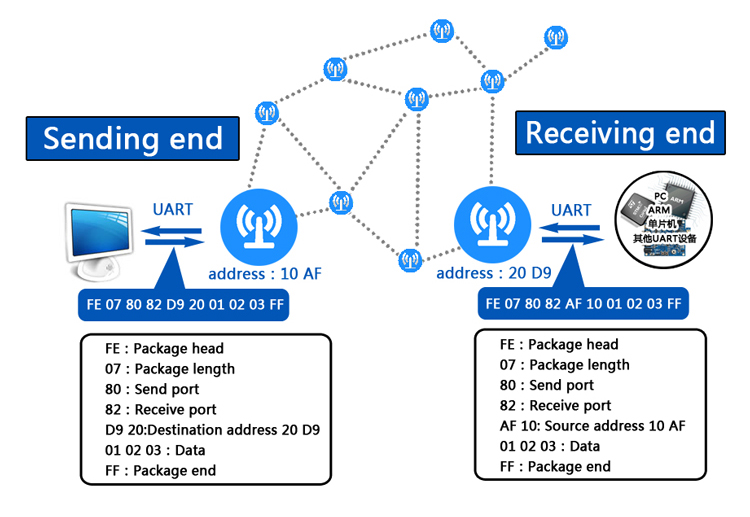

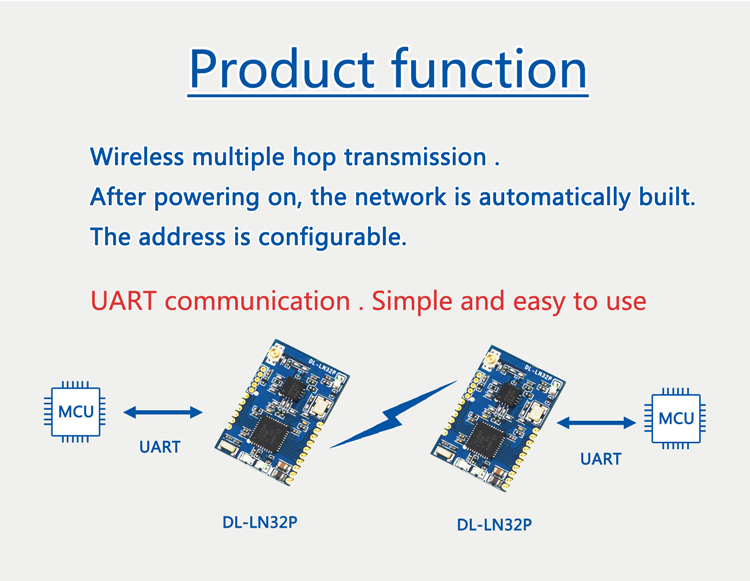

DL-LN32P wireless ad-hoc network module can build network automatically after powering on. When the module is working, it will automatically form a wireless multi-hop network with the surrounding modules. This network is a peer-to-peer network (PPN), requiring no central nodes.Micro-controller (MCU) or computer can send a destination address and some data to modules through Uart. The module will send the information on the optimal route to the destination module and the destination module will output the source address and the data through Uart.

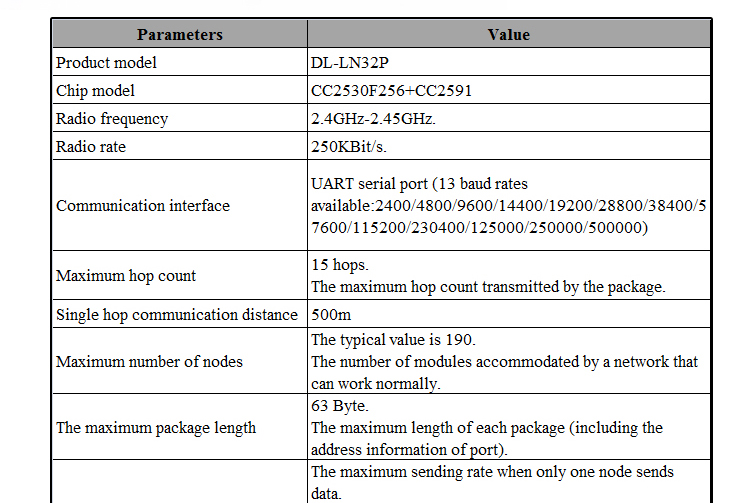

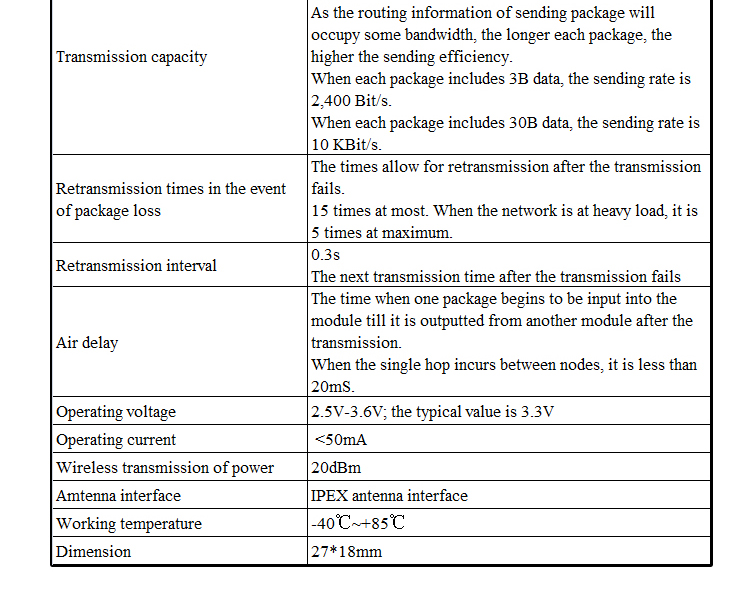

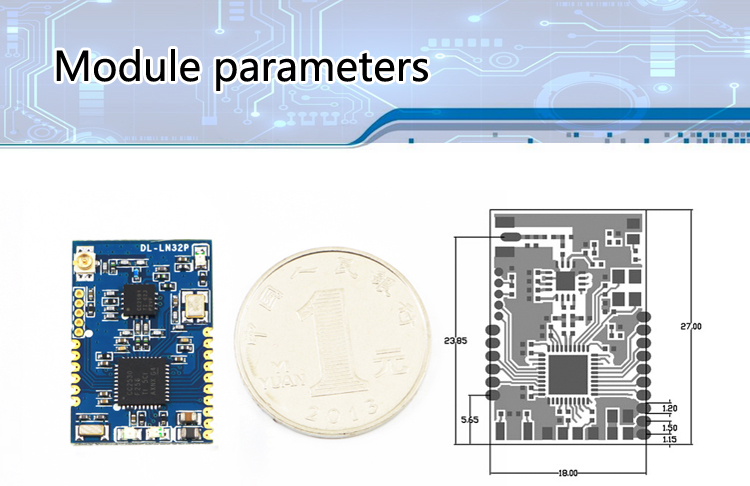

  • Specification & Feature

    zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module zigbee muti-hop ad-hoc module

    zigbee muti-hop ad-hoc module

  • User Manual
    user manual of 7500m Multi-Hop Ad-Hoc ZigBee Module DL-LN3X_usermanual.pdf

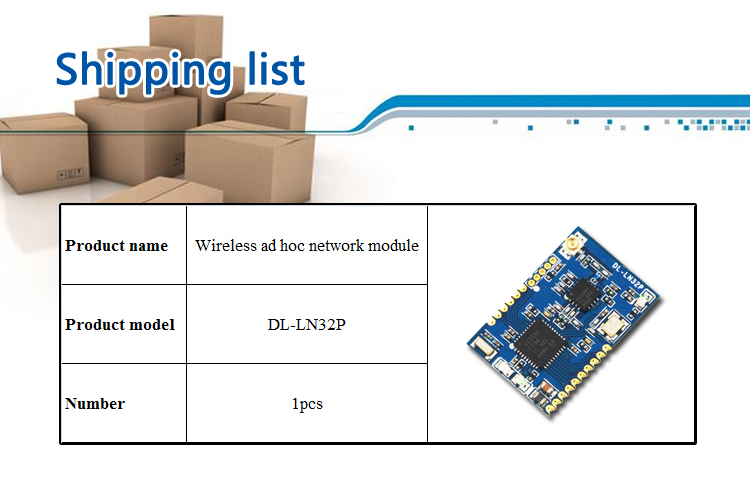

  • Order Information

    zigbee muti-hop ad-hoc module
