• 500m Micro Power RS-232/RS-485/TTL to RF Wireless Module

HXJZ-862A

500m Micro Power RS-232/RS-485/TTL to RF Wireless Module

HXJZ-862A, the Low-power wireless transceiver data module is used as the wireless data transceiver in long-ranges, with the small size, weight and power consumption and good stability and reliability.


  • Specification & Feature
    Serial number
    Item
    Parameter
    Note
    1
    Modulation mode
    FSK
    2
    Work frequency
    433MHZ
    868/915mhz is optional
    3
    Transmission power
    100mW
    4
    Transmitting current
    100mA/TTL,100mA/RS485,110 mA/RS232
    5
    Receiving current
    11mA/TTL,11mA/RS485,16 mA/RS232
    6.
    Sleeping current
    1uA
    7
    Receiving sensitivity
    -110dbm(1200bps)
    8
    Channel amount
    8 channel
    User setting
    9
    Working temperature
    -20 ℃ ~ +65 ℃
    10
    Working humidity
    10%~90%(relative humidity without condensation)
    11
    Antenna impedance:
    50
    12
    Power supply
    TTL: DC+2.8V~+3.3V or 3.6V~+5.5V, RS232/RS485: DC+4.5V~+5.5V
    13
    Dimension
    70mm x 45mm x 19mm
    14
    Interface
    TTL, RS232, RS485
    Choose it when order
    15
    Reliable transmit distance
    300~500m

    1.Power and receiving sensitivity
    The transmission power is 100mW, Receiving sensitivity: -110dbm,
    Transmission current100mA, Receiving current11mA, sleeping current 1uA.
    2. Modulation mode and Frequency
    Modulation mode: FSK, Frequency: 433mhz. Also, capable of 315mhz, 868mhz and 915mhz.
    3. High anti- interference and low BER(Bit error Rate)
    Based on the FSK modulation mode, the high- efficiency forward error correction channel encoding technology is used to enhance datas resistance to both burst interference and random interference and the actual bit error rate of 10-5 ~ 10-6 can be achieved when channel bit error rate is 10-2.
    4. Long transmission distance
    Within the range of visibility, the reliable distance isBER=10-3/1200bps >500m when the antenna is higher than 200m (BER=10-3/9600bps).
    5. Transparent data transmission
    Transparent data interface is offered to suit any standard or nonstandard user protocol. Any false data generated in the air can be filtrated automatically (What has been received is exactly what has been transmitted). The change time between receiving and sending is 10ms.
    6. Multi- channel
    The standard JZ862 configuration provides 8 channels to meet the multiple communication combination mode of the user.
    7. High speed wireless communication and Large data buffer zone
    When the RF baudrate is bigger than COM baudrate, allowing to transmit unlimited length data at one time, when the RF baudrate is smaller or equal to the COMs, allowing the transmission of 255 Bytes data .
    8. Intelligent data control and the user doesnt need to prepare excessive programs
    Even for semi duplex communication, the user doesnt need to prepare excessive programs, only receiving/transmitting the data from the interface. JZ862 will complete the other operations automatically, such as transmission/receiving conversion in the air, control, etc.
    10. High reliability, small and light
    Single chip radio - frequency integrated circuit and single chip MCU are used for lessened peripheral circuits, high reliability, and low failure rate.
    11. Watchdog monitor
    Watchdog monitors the inner function, it changes the traditional product structure and also improve the reliability of our modules.

    Antennas

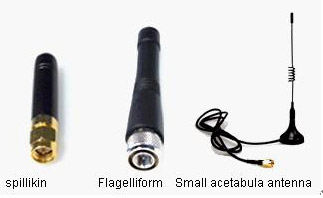

    RF Module Antennas
    Application
    • AMR Automatic Meter Reading
    • Wireless alarm and security systems
    • Home automation
    • Low power telemetry
    • Wireless conference voting system;
    • Sports training & competition;
    • Wireless dishes ordering;
    • Wireless POS, PDA wireless smart terminal;
    • Electronic bus station and intelligent traffic;
    • RF transmitter Wireless electronic display screen and queuing machine;
    • Wireless telemetry Charging for parking, parking lot;
    • Wireless modem Automobile inspection and four-wheel orientation;
    • Wireless sensor Industrial wireless remote control and air conditioning remote controller;
    • Observation and predication of oil well and hydrological information;
    • Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection system;
