• 10km-20km Middle Power RS-232/RS-485/TTL to RF Wireless Module

HXJZ-878

10km-20km Middle Power RS-232/RS-485/TTL to RF Wireless Module

HXJZ-878, the Middle-power wireless transceiver data module is used as the wireless data transceiver in long-ranges, with the small size, weight and power consumption and good stability and reliability.


  • Specification & Feature
    • uses GFSK modulation mode, reliable transmission distanceup to 10Km line of sight above;
    • carrier frequency 433MHz;
    • provides 16 channels;
    • interface / channel rate: 1200/2400/4800/9600/19200/38400bps;
    • Interface: TTL, RS-232, RS-485 selected by the user;
    • transceiver, half duplex, sending and receiving data conversionautomatically, as long as the interface to send / receive data to the conversion time is short;
    • can be used for point to point, multipoint, multi-pointcommunication and other combinations;
    • transparent data transmission, can transmit long data frames;
    • Power: Power 5w, receiving current <45mA, transmitting current<1.5A;
    • Power Supply :10-13V DC, typ: 12V;
    • Temperature: -40 ℃ ~ +85 ℃
    • size: 109mm x 79mm x 30mm (excluding antenna base anddata interface); Weight: 290 g;
    • exchange model: HXJZ-87 series;
    • Standard antenna: TNC TNC coarse whip or whip can bendthick
    • Using CC1020 chip, bare boards, small size, easy to useembedded. Narrowband interference is strong, with a filter circuit, high receiver sensitivity, power, transmission is stable and reliable distance.

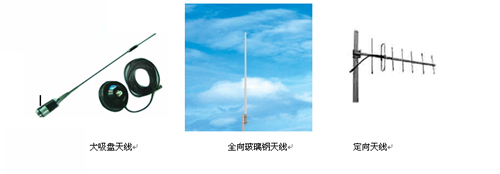

    Antennas
    RF Module Antennas

    Application
    • AMR Automatic Meter Reading
    • Wireless alarm and security systems
    • Home automation
    • Low power telemetry
    • Wireless conference voting system;
    • Sports training & competition;
    • Wireless dishes ordering;
    • Wireless POS, PDA wireless smart terminal;
    • Electronic bus station and intelligent traffic;
    • RF transmitter Wireless electronic display screen and queuing machine;
    • Wireless telemetry Charging for parking, parking lot;
    • Wireless modem Automobile inspection and four-wheel orientation;
    • Wireless sensor Industrial wireless remote control and air conditioning remote controller;
    • Observation and predication of oil well and hydrological information;
    • Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection system;
  • User Manual
    user manual of 10km-20km Middle Power RS-232/RS-485/TTL to RF Wireless Module HXJZ-878_User_Manual.pdf
  • Driver & Software
    software and driver of 10km-20km Middle Power RS-232/RS-485/TTL to RF Wireless Module RF module SoftwareV3.6.zip
